The TS series infrared thermal imaging sight is designed specifically for night observation and precise aiming, and is an excellent infrared thermal imaging product. This product has clear imaging, compact size, low power consumption, and high reliability. It supports one click switching of multiple color adjustment modes and can effectively penetrate obstacles such as fog, smoke, and dust, synchronously completing search, reconnaissance, and aiming tasks. The product has strong adaptability to the environment and excellent impact resistance; Easy to install and operate, widely suitable for night hunting, outdoor sports and other scenarios.
Product Details
Product Features
Equipped with high-performance image processing algorithms, it responds quickly, effectively suppresses noise, enhances contrast, and has adaptive optimization capabilities, significantly improving imaging quality.
Support 1-4 times continuous picture in picture electronic zoom, achieving real-time zoom observation of local areas while maintaining panoramic view without loss, effectively improving target recognition accuracy.
The unique crosshair mode can quickly capture targets at any distance and significantly improve aiming accuracy, supporting multiple color options.
Supporting all-weather operation, it can stably complete observation and search tasks in complex environments such as day and night, rain, fog, smoke, and haze, and can also be equipped with a laser ranging module.
Adopting the standard Picatinny rail kit, it is easy to install and disassemble, with a structure that is resistant to falls and earthquakes. It has ultra-low power consumption characteristics and excellent reliability for field operations.
Supports WIFI/hotspot function, allowing real-time video viewing and remote operation through mobile terminal apps such as smartphones, tablets, and laptops.

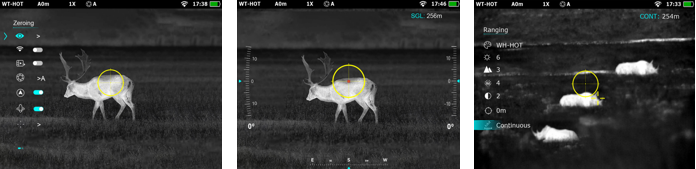

Product effect
Performance parameters
Product Series
Product Model
TS2
TS3
TS6
detector
Infrared detector type
Vanadium oxide uncooled infrared focal plane
resolution
256×192
384×288
640×512
Working band
8μm~14μm
pixel size
12μm
NETD
≤ 40mK@ 25°C,@F/1.0
Image frame rate
50Hz
lens
infrared lens
19 mm F1
(Optional 25mm F1)
35mm F1 (25mm F1, 50mm F1 optional)
field of view
9.2°×6.9°（19mm）
7.5°×5.3°（25mm）
10.5°×7.9° (25mm)
7.5°×5.6° (35mm)
5.3°×3.9° (50mm)
12.5°×10° (35mm)
8.8°×7°(50mm)
Focusing method
Manual focusing
Display&Image
display mode
Single eye 0.39-inch color OLED, 1024 × 768
Visual acuity adjustment
-8~+3
Exit pupil
38mm
Image polarity
Black hot/white hot/false color
Electronic amplification
1×/2×/3×/4×
picture-in-picture
support
WIFI
Support image transfer (limited to Android system)
General specifications
power supply method
CR123A battery, 4 cells
Battery working time
≥ 4 hours
storage
64GB (maximum 512GB)
Installation interface
Picatinny rail
weight
≤ 650 g (including battery)
language
Simplified Chinese/English/Russian, etc
Size (L × W × H)
≤ 260mm × 60mm × 80mm (including buckle)
electrical interface
Type-C， Support power supply, analog video output, and media management
